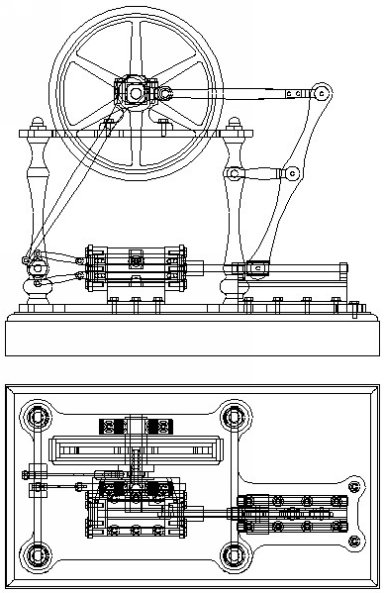

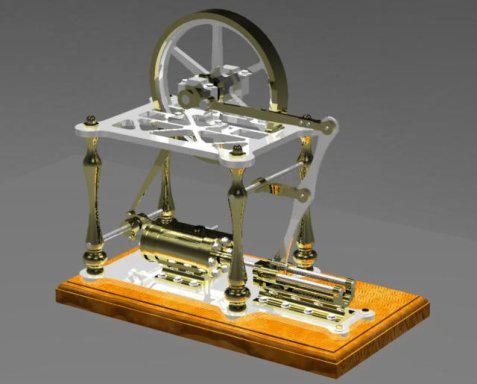

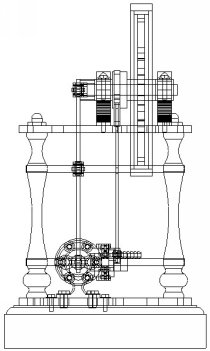

This is an original design, borrowing different elements from several examples found over the years.
The main feature is the dual spool valve similar to an old Weeden toy engine I had. It is self draining through the exhaust, without need for drain cocks.
I am currently fine tuning the design and developing the CNC code to make the individual parts.

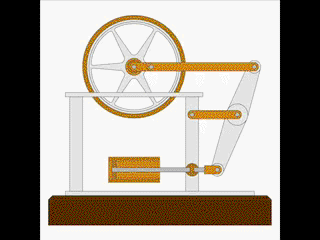

I also have other variations in the works utilizing unique linkage to control motion.
Planned releases are:
Finished Engines
Pre-Machined Kits just needing hand finishing and assembly
Lathe and Drill Press Kits with milling machine work done and holes spotted
Detailed Plans and Construction Guide
Please email if any additional information is needed.
